| Inputs |
|
| Range |
4 digit with decimal point |
| Input type |
a)Proximity switch, photo
electric switch,
electromagnetic
pickup(+12 VDC provided)
b)Limit switch, microswitch
etc(potential free contact
closure)
c)Voltage pulse : 3 to 30 V,
unipolar |
| Maximum input frequency |
3 khz |
| Reset |
Front panel key, terminals
at
rear |
| Reset time |
0.05 seconds max |
| Direction |
User selectable |
| Accuracy |
Absolute |
| Outputs |
|
| No. of relays |
1 |
| Relay contacts |
1 x NO-C-NC |
| Relay contact rating |
5A/250 V AC, resistive |
| Relay mode |
Latch (overrun ON, overrun
OFF) Time pulse repeat
Auto reset |
| Memory |
|
| Type |
Non-volatile, no batteries
used |
| Duration |
Indefinite(in the absence of power) |
| Power supply |
|
| Supply voltage |
85~265 V AC/DC, 50 Hz |
| Enclosure |
|
| Material |
ABS plastic |
| Dimensions |
48(W) x 48(H) x 112(D) |
| Mounting |
Panel mount |
| Panel cutout |
44 x 44 mm |
| Temperature, humidity |
|
| Ambient, storage |
-22~+85°C |
| Ambient,operation |
0~50°C |
| Relative humidity |
0~95% |
| Other |
|
| Programming |
With 3 keys & built-in display |
| Keypad |
Tactile, 3 keys |
| Display |
Upper: 4 digit, 7 segment
0.3"(7.6mm) red LED display
Lower : 4 digit, 7 segment
0.3"(7.6mm) green LED
display |
|
PROGRAMMABLE
PARAMETERS |
|
| Scale factor |
b.no x 10n |
| Base no(b.no) |
0.001 to 9999 |
| Exponent(n) |
-5 to 2 |

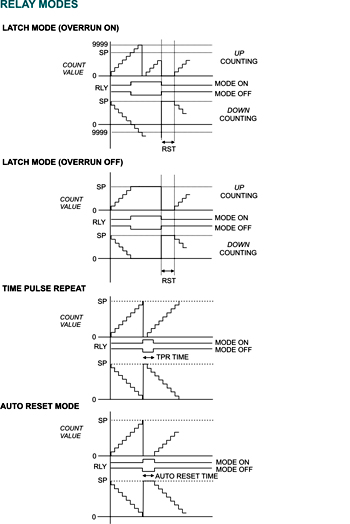

| Relay mode |
Latched ON, OFF at SP
Latched OFF, ON at SP
Time Pulse repeat
Auto reset |
| Auto reset time/ |
0.1 to 99.9 seconds |
| Time Pulse repeat |
|
|
