| 2-WIRE TEMPERATURE TRANSMITTER --------------------------------------------------------------------------------------------TRX10 |
| |
| INPUT : Pt100 |
| |
|
- Solder jumpers for
- Span
- Zero
- Upscale / Downscale
- 4~20 mA / 20~4 mA
- Multirange : 8 SPAN range, 25 to 600 C°/45 to 1080 F°
4 ZERO ranges, -100 to +70 °C/ -148 to + 158 °F
- Accurate : 0.1% temperature linear 4~20 mA output
- 6.5 V loop drop allows 800 Ω load @ 24 V DC
- Upscale / downscale selectable sensor break detection
- 4~20 mA or 20~4 mA selection
- ON LED shows state
- Pt50, Pt200, Pt500, Pt1000 on request
|
| |
GENERAL
TRX10 is a DIN rail mounted high performance, "all-in-one" 2-wire temperature transmitter. Its high reliability industrial design offers some rare functions, e.g. 4~20 mA or 20~4 mA selection.
TRX10 with Pt100 input is adjustable for 8 overlapping ranges in
°C or °F and gives a temperature linear output. All selections are made by solder jumpers. 'Fine' ZERO / SPAN potentiometers are provided for calibration.
The product design gives easy access to terminals & adjustments. |
|
| |
| |
|

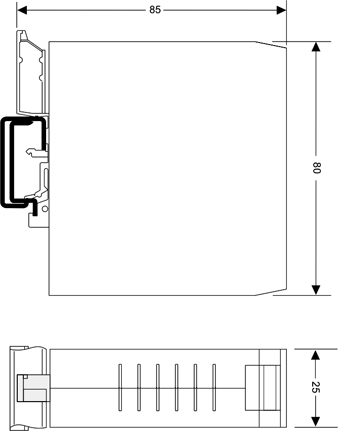

| Enclosure |
|
|
|
| |
| SPECIFICATION All specifications at ambient of 25° C, unless specified otherwise |
| |
| INPUT |
|
| Input type |
Pt100 (α = 0.00385), 3-wire
connection |
| Sensor current |
0.3 mA |
| Other input type |
Pt50, Pt200, Pt500, Pt1000
on request |
| MONITORING |
|
| Sensoe break detection, selectable |
Upscale ~25 mA, Downscale
~3 mA |
| ON LED |
Provided |
| ADJUSTMENTS |
|
| Zero selection |
-100 to + 70 °C(-148 to
+158 °F) in 4 overlapping
ranges (see table below) |
| Zero, fine adjustment |
± 10% |
| Span selection |
25 to 600 C°(45 to 1080F°) 8
Overlapping ranges (See
table below) |
| Span, fine adjustment |
± 10% |
| OUTPUT |
|
| Current, selectable |
4~20 mA, 20~4 mA |
| Linearity |
Temperature linear |
| Current limit |
~25 mA |
| Permissible load |
800 Ω@ 24 VDC, 22 mA |
|
| ACCURACY |
|
| Linearity & calibration |
± 0.1% of span |
| Temperature effect |
± 0.5 of span / 25C° |
| on accuracy |
± 0.6% of span / 50 F° |
| Supply voltage / load effect |
± 0.002% of span / V |
| POWER SUPPLY |
|
| Supply voltage |
6.5 to 32 VDC |
| ENCLOSURE |
|
| Material |
ABS plastic |
| Dimensions |
80(H) x 25(W) x 85(D)mm |
| Mounting |
Snap on for 35 mm DIN rail
to DIN 46277 |
| Connection, single/Stranded Wires |
≤2.5mm2, AWG14 |
| Weight |
70 grams |
| Protection |
IP 20 |
| TEMPERATURE, HUMIDITY |
|
| Ambient, storage |
-20 to + 85 °C(-5 to + 185
°F ) |
| Ambient, operation |
-20 to + 55 °C(-5 to + 160
°F ) |
| Relative humidity |
0~95% |
|
|
| |
| |
| ZERO, SPAN |
| Zero selection |
Span selection |
| °C |
°F |
C° |
F° |
| -102 to -65 |
-150 to -85 |
25 |
45 |
| -68 to -21 |
-90 to -5 |
50 |
90 |
| -28 to + 29 |
-18 to +84 |
100 |
180 |
| -6 to +73 |
+21 to +163 |
200 |
360 |
| |
|
300 |
540 |
| |
|
400 |
720 |
| |
|
500 |
900 |
| |
|
600 |
1080 |
| The above zero & span selections are done using solder jumpers. The calibration for a given range is then done using the '4' & '20 mA potentiometers on the instrument front. |
|
| |
|
|
